20v 4age – Intake adapter to a Pipercross combined filter
$80.00
Description
20V 4age – Intake adapter to a Pipercross combined filter
This filter adapter plate is for those that have a quad throttle conversion and wish to use long velocity stacks with a method of filtration that’s reliable, low restriction and easy to work with.
These may be supplied with a rough surface finish that have imperfections such as scuff marks.
Suits
– Pipercross PX600 combined filters – to clear 100mm velocity stacks the correct variant is the C604D model.
– Velocity stacks from the 30 to 100MM in length.
– WILL NOT SUIT the spacing of throttles as used with our 3sge Beams manifolds.
– WILL NOT SUIT most right hand drive – rear wheel drive vehicles due to clearance issues such as the location of the clutch master cylinder. The customer will need to check for adequate clearance.
Parts options
This plate is supplied in two different potential variants pending on which model of throttles they are intended to suit.
– 20V 4age Silvertop throttles (either type): 73mm spacing between the centers of the stack mounting holes.
– 20V 4age Blacktop throttles: 83mm spacing between the centers of the stack mounting holes.
Additional notes
– Can be mounted upside down by flipping plate for more clearance if needed.
– Plate material is either 304 stainless or aluminium.
Additional information
Weight | 0.6 kg |
---|---|
Dimensions | 44 × 19 × 1 cm |
Engine type / throttle type |
1 review for 20v 4age – Intake adapter to a Pipercross combined filter
You may also like…
-
Select options This product has multiple variants. The options may be chosen on the product page

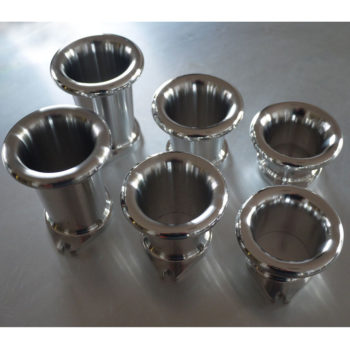

Velocity stacks – 20V 4age Blacktop throttles
$200.00 – $290.00 -
Select options This product has multiple variants. The options may be chosen on the product page
Velocity stacks – 20V 4age Silvertop throttles
$200.00 – $290.00
Nick (verified owner) –
Simple and well built.
Bought the blacktop version. Bolts straight on with the accompanying blacktop velocity stacks, and fits well to the pipercross PX600 C604D. Quite thin so doesn’t get in the way, but still very strong.
